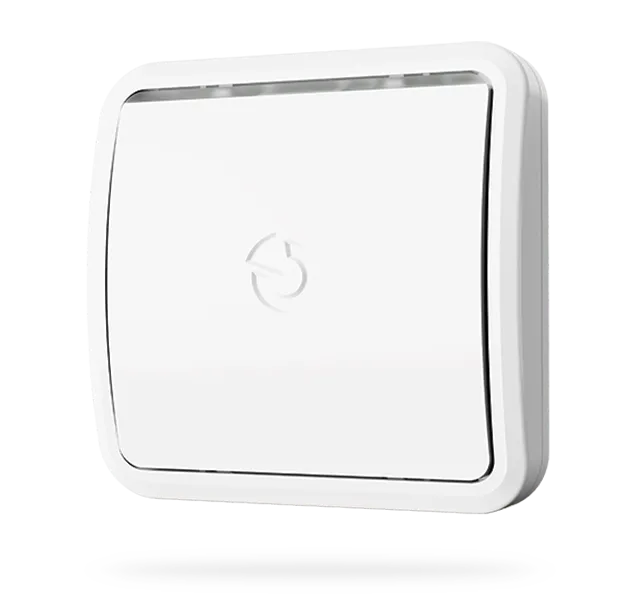

Wireless Doorbell Button
SKU: JA-159J
- Wireless doorbell button for JABLOTRON 100+ security systems.
- Can be used as a wireless doorbell.
- Can be used to trigger a panic alarm.
- Can be used to control compatible electrical devices and equipment.
- Triggers the relevant functions defined in the system when the button is activated.
- Operates using the JABLOTRON wireless communication protocol.
- Communicates on the 868.1 MHz frequency band.
- Requires a JA-11xR radio module to be installed in the control panel.
- One doorbell button occupies one device position in the system.
- Compatible with AC-16x series multifunction relays.
- Provides a wireless communication range of approximately 300 m in open space.
- Powered by two CR2032 lithium batteries.
- Typical battery life is approximately 5 years (3 activations per day, outdoor conditions).
- Features IP65 protection and is suitable for protected outdoor environments.
- Operating temperature range from -25 °C to +60 °C.
- Can be installed with a protective canopy to provide additional protection against outdoor
Share:
| General Features | |
|---|---|
| Weight: | 37 g |
| Supply: | 2 × CR2032 lityum pil, 3 V / 0,2 Ah |
| Operating Temperature: | -25 °C ile +60 °C |
| Product Class: | Wireless Doorbell Button |
| Product Code: | JA-159J |
| Communication Method: | Approximately 300 m (open area) |
| Dimension: | 70 × 30 × 20 mm |
| Humidity: | %25–75 |
| IP Koruma Standardı: | IP65 |
| Max. Current: | 3 mA |
| System: | JABLOTRON 100+ |
| Environment: | Class III – Korunaklı dış ortam |
| Radio operating frequency: | 868,1 MHz, JABLOTRON protocol |
