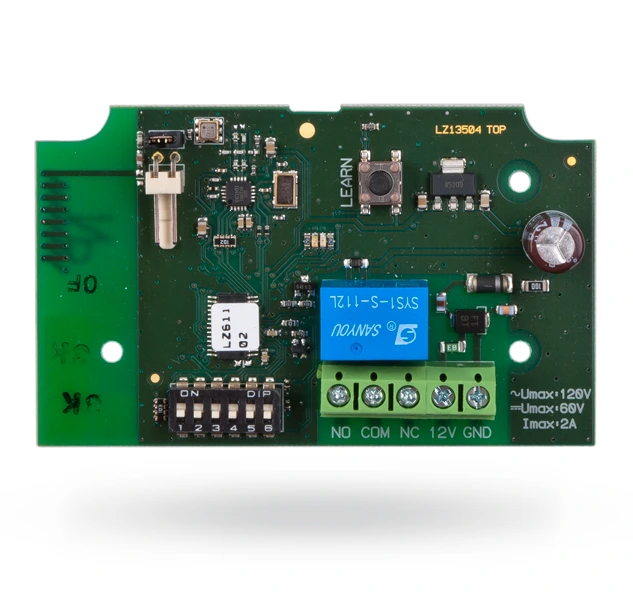

Wireless Power Output Module (PG)
SKU: JA-150N
- Wireless power output module copying the state of a selected PG output (PG1–PG32) in the JABLOTRON 100+ system.
- Relay rating: 250 V AC, resistive load max. 16 A, inductive/capacitive load max. 8 A, halogen lighting max. 1000 W.
- The PG output to be copied is addressed with 5 DIP switches on the PCB.
- It does not occupy any position in the system.
- 230 V / 50 Hz mains supply, consumption 1.5 W.
- Dimensions 82 x 50 x 19 mm.
Share:
| General Features | |
|---|---|
| Power Supply: | 230 V / 50 Hz; consumption 1.5 W |
| Operating Temperature: | -10 °C to +40 °C |
| Certificate: | ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1 |
| Compatibility: | JABLOTRON 100+ control panels |
| The Color: | White |
| Dimension: | 82 x 50 x 19 mm |
| Mounting: | Wire diameter: max. 2 x 1.5 mm² or 1 x 2.5 mm² |
| Supported Features: | Relay: max. 250 V AC; resistive 16 A; inductive 8 A; halogen 1000 W; PG selected by 5 DIP switches; occupies no position |
| Environment: | Indoor general (EN 50131-1) |
| Radio operating frequency: | 868.1 MHz |
