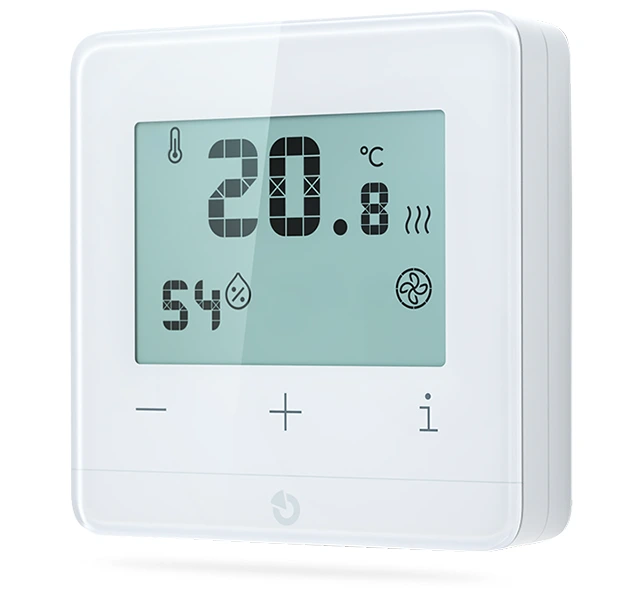

Wireless Indoor Thermostat
SKU: JA-150TP
- Wireless thermostat designed to measure and control the indoor temperature.
- It expands the home automation capabilities of the JABLOTRON 100+ system with simple zone control.
- Measuring range -10 °C to +70 °C, measuring sensitivity ±0.1 °C.
- Heating is switched via a programmable PG output of the system.
- Typical battery lifetime approx. 2 years on 2 x AA alkaline batteries.
- Communication range approx. 300 m (open area) via the 868.1 MHz JABLOTRON protocol.
- Class I temperature controller according to Regulation (EU) No 813/2013.
Share:
| General Features | |
|---|---|
| Weight: | 60 g |
| Power Supply: | 2 x alkaline AA (LR6) 1.5 V batteries. Note: Batteries not included |
| Battery Life: | approx. 2 years |
| Operating Temperature: | -10 °C to +70 °C |
| Certificate: | ETSI EN 300 220, EN 60950-1, EN 50130-4, EN 55022 |
| Compatibility: | JABLOTRON 100+ control panels |
| The Color: | White |
| Dimension: | 66 x 90 x 22 mm |
| Additional Feature: | Measuring range -10 °C to +70 °C; sensitivity ±0.1 °C; class I per (EU) 813/2013 |
| Maximum radio frequency power (ERP): | 10 mW |
| Communication range: | approx. 300 m (open area) |
| Environment: | Indoor general (EN 50131-1 environmental class II) |
| Operating conditions under the general authorization: | ERC REC 70-03 |
| Radio operating frequency: | 868.1 MHz, JABLOTRON protocol |
