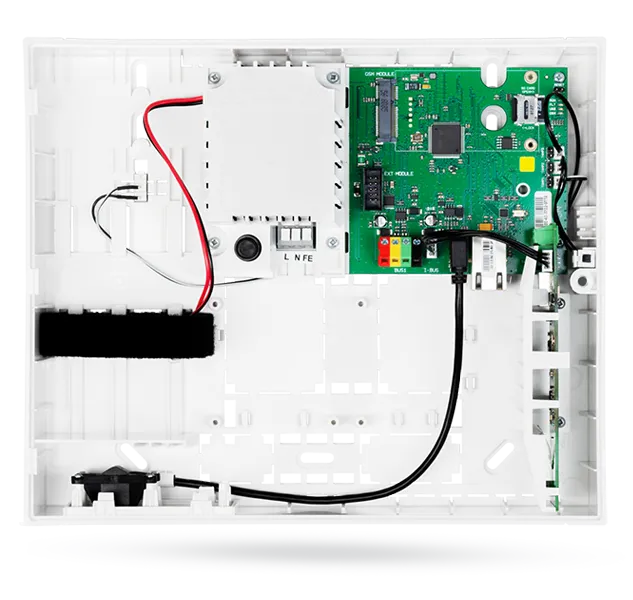

GSM Control Panel with LAN and Radio Modules
SKU: JA-103KR
- A core component of the JABLOTRON 100+ security system. A control panel used to protect homes, offices, and small businesses.
- The necessary system configurations and sizing are programmed via the F-Link software (version 2.0.0 and later).
- The JA-103K control panel offers: 50 wireless or bus devices, 50 users, 8 zones, 32 programmable PG outputs, 20 mutually independent calendar events, 8 user SMS and voice reports, and 5 configurable ARC settings. 5 selectable protocols for ARC
- The control panel includes: 1 terminal block for a bus connection, 1 connector for the internal radio module (JA-111R), and 1 connector for a GSM/GPRS/LTE communication device (JA-194Y/JA-194Y-LITE)
- The control panel also offers the following functions: Maintenance, Day/Night mode, Short-term absence response, Auto-configuration, Advanced calendar features
Share:
| General Features | |
|---|---|
| Weight: | 1844 g/970 g |
| Power Supply: | ~ 110–230 V/50–60 Hz, max. 0.28 A, with an F1.6 A/250 V fuse, Protection Class II |
| Working Conditions: | ERC REC 70-03 |
| Operating Temperature: | -10 °C to +40 °C |
| Certificate: | EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581 |
| Dimension: | 268 x 225 x 83 mm |
| EMC: | EN 50130-4 bas. 2+A1, EN 55032 bas. 2, ETSI EN 301 489-7 |
| Rated current consumption: | 1000 mA |
| Classification: | Security grade 2 according to EN 50131-1 |
| Environment: | Environmental class II (indoor general) according to EN 50131-1 |
| Certification body: | Trezor Test sro (no. 3025) |
| Operating conditions under the general authorization: | EN 62368-1+A11 |
| Backup Battery: | 12 V; 2.6 Ah (lead gel) |
| LAN communicator: | Ethernet interface, 10/100BASE |
| Maximum number of devices: | 50 |
| Event memory: | Approx. 7 million latest events, including date and time |
| Power supply unit: | Type A according to EN 50131-6 T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC. |
| GSM communicator (2G): | 850 / 900 / 1800 / 1900 MHz |
| Radio operating frequency: | 868,1 MHz |
| Radio emissions: | ETSI EN 300 220-1,-2 (modül R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM) |
| Caller identification (CLIP): | ETSI EN 300 089 |
