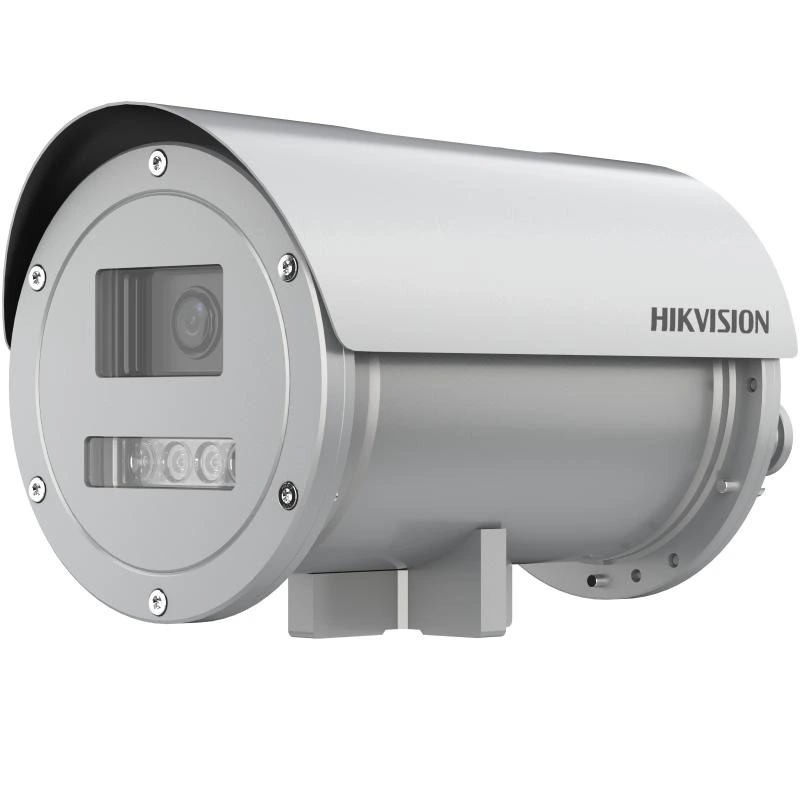

8MP Explosion-Proof Variable Focus Camera
SKU: DS-2XE6885G0-IZHS
- 1/2" Progressive Scan CMOS sensor
- 3840 × 2160 resolution
- Motorized varifocal lens options: 2.8–12 mm and 8–32 mm
- 316L stainless steel housing with high corrosion resistance and mechanical durability
- IP68 protection rating for complete resistance to water and dust
- H.265+/H.265/H.264+/H.264 video compression for reduced bandwidth and storage consumption
- Motorized varifocal lens for remote focus and zoom adjustment (model dependent)
- Specially designed security camera structure for industrial and hazardous environments
Share:
| Interface Unit | |
|---|---|
| Alarm input: | 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA) |
| Audio Compression Format: | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Video & Audio Input | |
| Main Stream Resolution: | 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Video Compression | |
| Audio compression: | 1 input (line in), terminal block, max. input amplitude: 3.3 vpp, input i mpedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Video Compression Format: | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Image | |
| Focus: | Auto, semi-auto, manual |
| Resolution: | 8 MP files (3840 × 2160) |
| Display Illumination: | Color: 0.009 Lux @ (F1.2, AGC ON), B/W: 0.0009 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Functions: | Anti-flicker, 5 streams and 5 custom streams, heartbeat, mirror, privacy mask, pixel counter |
| Shutter Speed: | 1 s to 1/100,000 s |
| SNR: | 52 dB |
| Camera | |
| Day & Night: | Day, Night, Auto, Schedule, Alarm Trigger (-S), Video Trigger |
| Iris / Odak: | Auto-iris, DC drive |
| General Features | |
| Dimension: | 352 mm × 200 mm × 214 mm (13.9" × 7.9" × 8.4") |
| Focal Length (mm): | 2.8 to 12 mm, horizontal FOV 112° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° 8 to 32 mm, horizontal FOV 42° to 15°, vertical FOV 23° to 8°, diagonal FOV 49° to 17° |
| Power: | 12V DC / 24V AC |
| Power: | 100 to 240 VAC, 0.4 A to 0.17 A, max. 18 W, terminal block; PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 18 W |
| cable: | 0.09 m (0.30 ft.) |
| EMC: | FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 55024: 2010 + A1: 2015, EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019) RCM: AS/NZS 60950.1: 2003 + Am1, Am2 and Am3, AS/NZS CISPR 32: 2015 IC: IC-VoC (ICES-003 Issue 7: 2020) |
| Network | |
| Ethernet: | 1 RJ45 10 M/100 M self-adaptive Ethernet port RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Video Bit Rate: | 32 Kbps to 16 Mbps |
| Camera Features | |
| Image Sensor: | 1/2" Progressive Scan CMOS sensör |
| Görüş Alanı: | 2.8 to 12 mm, horizontal FOV 112° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° 8 to 32 mm, horizontal FOV 42° to 15°, vertical FOV 23° to 8°, diagonal FOV 49° to 17° |
| Video & Audio Output | |
| Video Output: | 1 Vp-p Composite Output (75 Ω/BNC) |
| Contact lens | |
| Aperture type: | 2.8 to 12 mm: F1.4 8 to 32 mm: F1.7, constant F1.7 throughout the zoom range |
