SKU: DS-C66S-S12 Hıkvısıon

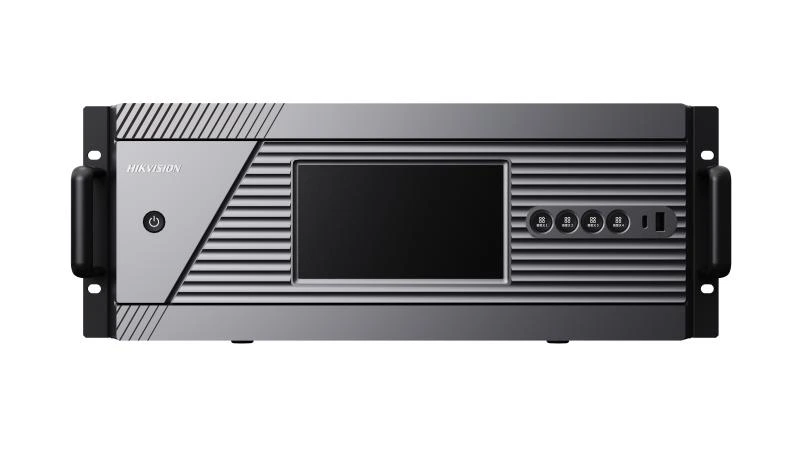

• The device adopts a 4U standard rack-mounted design with a 12-slot chassis supporting 6 input and 6 output slots.
• The 4U chassis features 1 fan with left-right airflow cooling.
• The chassis supports button operations, including 2 custom scene switch buttons and 2 scene switch buttons.
• The device features a plug-and-play modular design for flexible expansion and hot-swappable service boards for easy maintenance.
• The 4U chassis features a 7-inch touch IPS LCD panel, supporting real-time monitoring of chassis and sub-board status
• The chassis supports 2 × 3.5mm audio input and 2 × 3.5mm audio output.
• The device supports video input from computers, video conferencing terminals, and ultra -high-resolution servers, is compatible with DVI, HDMI, HDMI 4K, DP 4K, and SDI signal inputs, and allows custom resolution input.
• The device supports both composite and standalone audio input, with 16-bit, 32K/48K sampling, and dual-channel capabilities
• Both image capture and output support RGB888 for lossless image quality, with support for up to RGB101010
• The device supports ultra-high-resolution fusion, accommodating up to sixteen 4K ultra-high-definition signal inputs.
• The device supports input OSD overlay and input image cropping to remove black borders.
• The device supports DVI, HDMI, and HDMI 4K video signal output and the video signal output via network ports
• 2K sub-board supports 4 × 1080P60 outputs and 4K sub-board supports 2 × 4K outputs. Output is compatible with LCD and LED displays, with customizable output resolution.
• The main control board supports standalone audio and HDMI sub-boards support composite audio
•  The device utilizes frame synchronization technology to ensure all output ports display completely synchronized, intact, and smooth images without stuttering, frame loss, tearing, or seams.
•  The LED controller board supports mini loading (0.65MP per network port) and standard loading modes (2.925MP per network port). Standard load mode requires compatible screen support.
